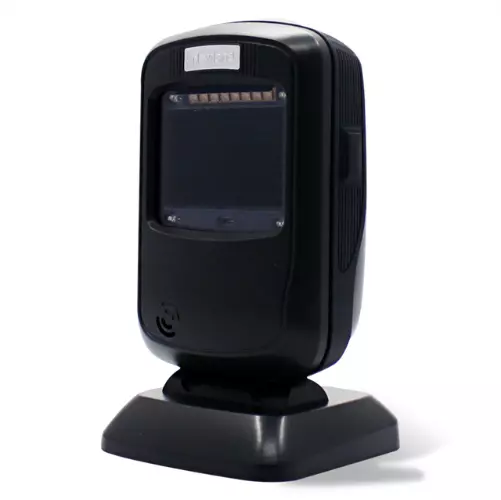

Newland Fr4080 Desktop 2D Scanner
Quick to Switch Mode
The Switch at the top of the scanner allows users to swiftly toggle between the Normal mode and High Motion Tolerance mode.
Superior Motion Tolerance
Exceptional motion tolerance (2.5m/s) and large FOV (horizontal 51°, vertical 32°) enhance user experience.
IP52-rated Sealing
An IP52-rated seal protects the scanner against the ingress of dust, water and other contaminants
Snappy On-screen Barcode Capture
Armed with Newland’s sixth-generation of 20170407technology, this CPU-based scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.
SKU - NLD1013
Share:
Product Details
- Brand-Newland
- Model Name/Number-NLS FR4080
- Connectivity Type- Wired
- Image Sensor-1280X200 CMOS
- Sealing-IP52
- Illumination-White LED
- Resolution-mil
- Typical Depth of Field-13mil
- Motion Tolerance-2.5m/s
- Scan Angle Pitch: +-50deg, Roll: 360deg, Skew: +-45deg
- Field of View Horizontal 51deg, Vertical 32deg
- InterfacesRS-232, USB
- Dimensions83(W)x81(D)x148(H)mm
- Weight-293 g
- Notification-Beep, LED indicator
- Operating Voltage5VDC
- Current Operating 219mA (typical)
- Operating Temperature-20 to 60 Deg C
- Storage Temperature-40 to 70 Deg C
- Accessories-Power Adapter, Cable
